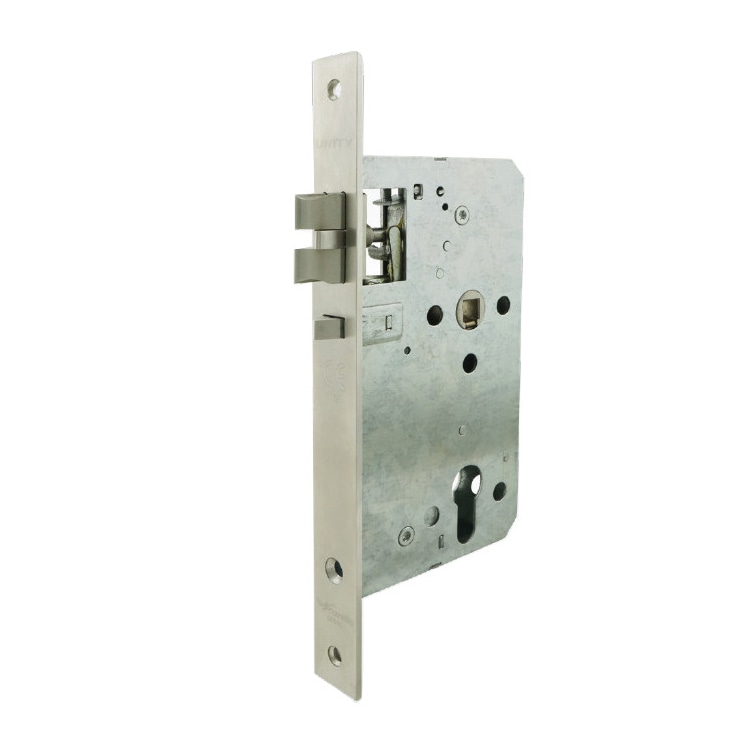

ANSI Grade 1 night latch mortise lock ML107205X

ML107205X ANSI Grade 1 commercial night latch mortise lock

Specifications and Features

-Designed to meet and exceed ANSI/BHMA 156.13 Grade 1 door mortise lock body requirement.

– Design for conformity to all of the requirement of EN12209: 2003

– Hybrid design of ANSI Specification in a Euro mortise lock case

– Modular case across functions for rapid door prepping and installation

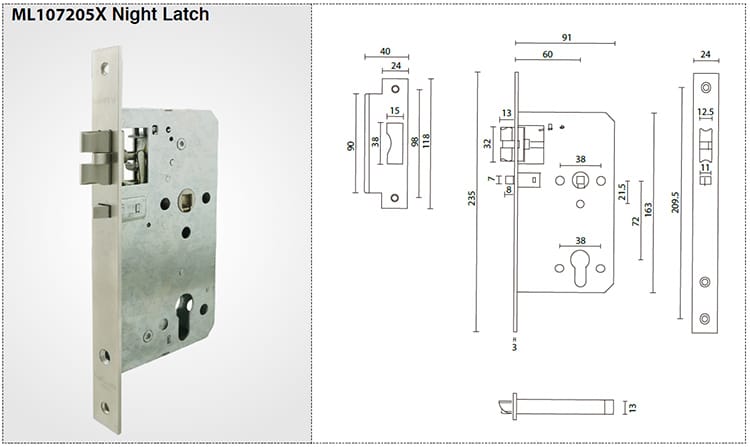

– ML107205X ANSI Grade 1 night latch mortise lock: 72mm centers, backset in 60mm

– 8mm follower

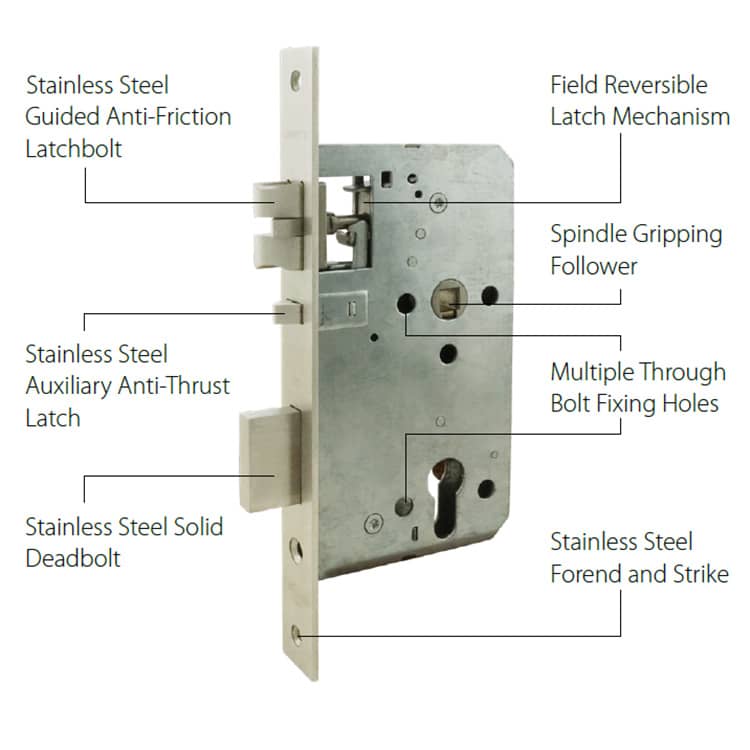

– Field reversible Anti-Friction latch bolt in solid stainless steel with 13 mm projection

– Single throw deadbolt in solid stainless steel with 20mm projection

– Stainless steel faceplate and strike plate

– Compatible with bolt through furniture and escutcheons of 38mm centers

– Compatible with the standard cylinder with Euro compatible cam

– Covers various functions and applications
