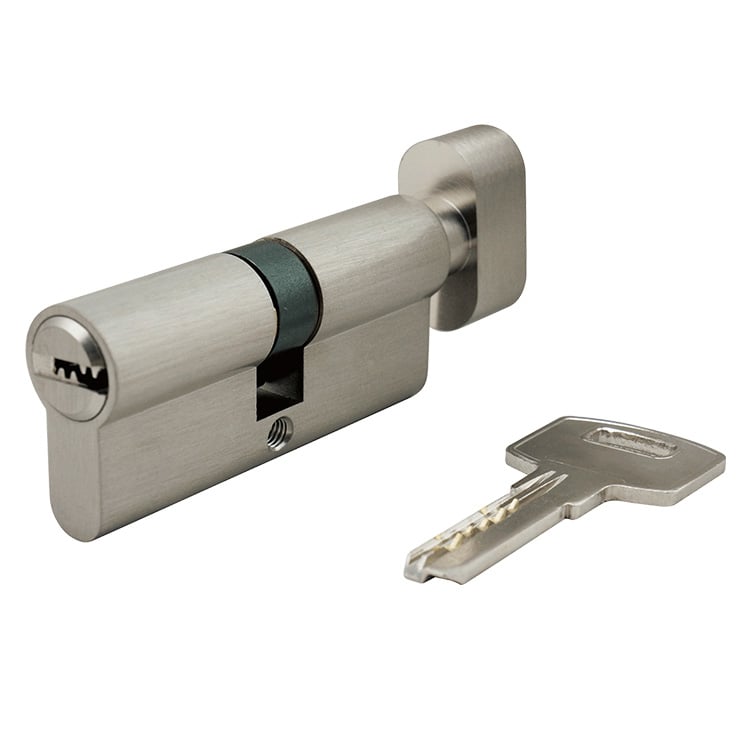

Thumbturn euro cylinder: ECD3030TK, DIN18252, brass material

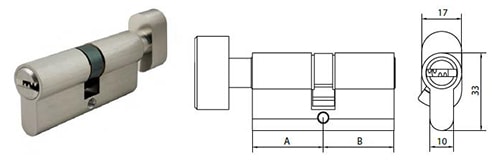

UNITY ECD series double profile thumbturn euro cylinder

Application: Keyed operation from one side (outside) and thumb-turn operated from the other size(inside)

A=30mm B=30mm

Hot sizes for reference

Item No.	A	B
Item No.	(30-60MM)	(30-60MM)
ECD3030TK	30	30
ECD3035TK	30	35
ECD3535TK	35	35
ECD3540TK	35	40
* Other sizes available upon request.

Specifications and Features
– Standard euro profile dimension according to DIN18252
– ECD3030TK thumbturn euro cylinder is made of solid brass body and keys
– Reversible key operation (double-sided dimpled keys)
– Various lengths available for different door thickness
– Symmetrical and asymmetrical variant available to work with the different lock installation position
– 6 pins construction to maximize key combination and security

EN1303:2005 Classification

Finishes

– Satin Nickel (SN)
– Brass Polished (BP)
– Nickel Plated (NP)
– Antique Brass (AB)

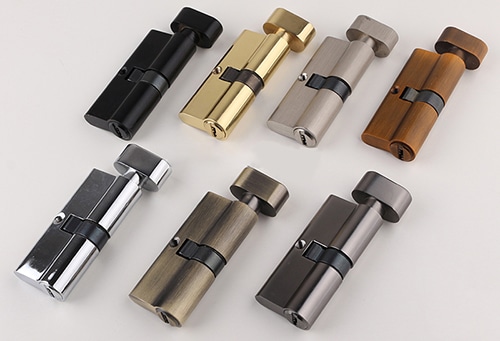

ECD euro cylinder with various finishes

Key Bow Options

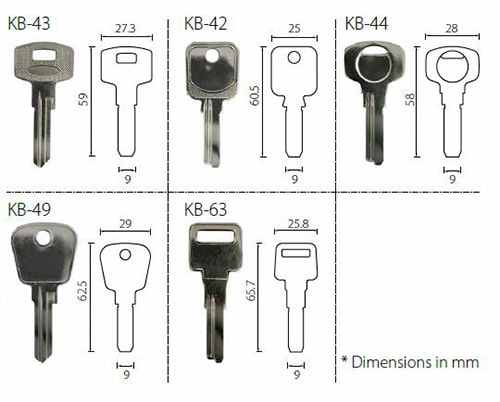

UNITY Key Bow Options

Related Products
Stainless Steel Security Escutcheons

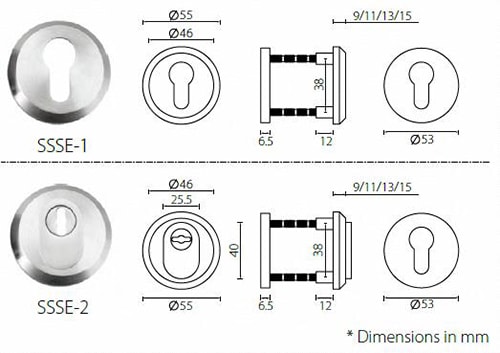

UNITY stainless steel security escutcheons

About UNITY Euro Cylinder
UNITY’s profile cylinders are suitable for most of the European locks with EN standards, and they are compliance to EN1303:2005 standards for commercial/industrial standards.

>> Full Catalog Download
>> Quick Inquiry and Quote

	Successfully type-tested for conformity to all of the requirements of EN1303:2005
	Successfully passed 240-minutes fire test of metal door assemblies to EN1634-1:2014
	All tests performed independently and certified by Exova/Warringtonfire/ Warrington APT. Test reports and/or certificates are available on request
