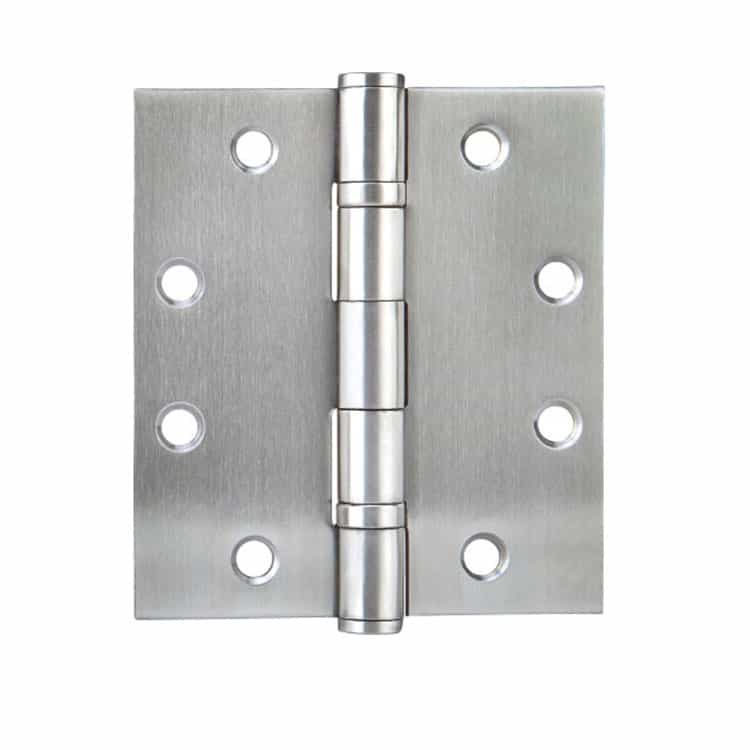

Stainless steel butt hinge 4” x 3.5” x 3mm Square Corner

Model No.HB403530
MaterialAISI304(AISI316)
Size4″ x 3.5″ x 3mm
Thickness3mm
FinishUS32D,US32,Satin PVD, Bright PVD
Corner TypeSquare corner
Installation MethodScrew fixings
Max Door Weight120KG
Ball BearingYes
Fire TestYes
CertificateCertifire, EN1935, EN1634, CE, etc.
>>  Get Complete Door Hinge Catalog

Print It
  • Product Detail
  • Tests and Standards

UNITY stainless steel butt hinge HB403530 comes in the size of 4” x 3.5” x 3mm; With square corner design, it is perfect for high-frequency usages, and it is suitable for a wide range of door thickness/weight(up to 120kg).

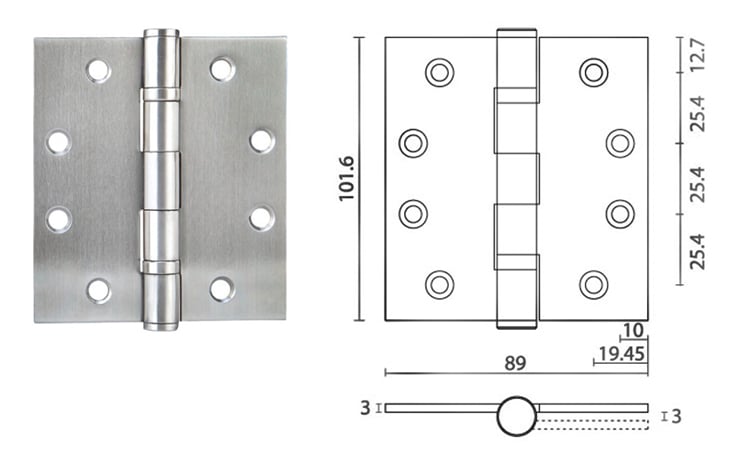

Stainless steel butt hinge HB403530 Square Corner

Specifications and Features

– AISI304 stainless steel material for high corrosion resistance (AISI316 material available on request)
– Hardened Ball Bearings
– Square and radius corner version available
– Template drilled for easy installation and retrofitting purpose
– Designed for metal or timber fire rate door set
– Dogbolt version optional for enhanced security
– Stainless steel butt hinge HB403530 is suitable for a wide range of door thickness/weight (up to 120kg)
– Supplied with CSK stainless steel screws



EN1935:2002 Classifications

Standard Hinges

4761*14013

Dogbolt Hinges

4761*14013

*Provided they are fitted in accordance with the guidelines detailed in IFCA/06252.



Finishes

– Satin Stainless Steel (US32D/630)
– Polished Stainless Steel (US32/629)
– Satin PVD Titanium
– Bright PVD Titanium

*Other finishes available on request




UNITY Mortice Door Hinge

Unity offers a standard range of hinges as well as the capability to produce hinges to the customer’s specifications.
Unity’s stainless steel butt hinges have been tested to EN1935: 2002 (Grade 13/Grade 10) and also fire rated to EN1634-1.

>> Full Catalog Download
>> Quick Inquiry and Quote

Successfully type-tested for conformity to all requirements of EN1935: 2002
Successfully passed and exceeded 240-minutes fire test of metal fire door assemblies to EN1634-1: 2014
CE Declaration of Conformity available upon request
UNITY HB series hinges are approved by Certifire.* Certifire No. CF735
Successfully passed 180-minutes fire test of fire-resistant door and frame to UBC 7-2 (1997): NFPA 252 (2008): UL 10 (b) Revision 1 (2009): UL 10 (c) (2009: CAN/ULC S104 (2010): NFPA 252 (2012), Certificate No. WH13-18485801
All EN/CE/Certifire tests performed independently and certified by Exova/Warrington Fire/Warrington APT. Test report/certificate available upon request.
All UL/UBC/NFPA tests performed independently and certified by Intertek Testing Services NA, Inc.
* Certifire is an independent third party certification scheme that assures performance, quality, and traceability of fire protection products.
