Pull Handle/

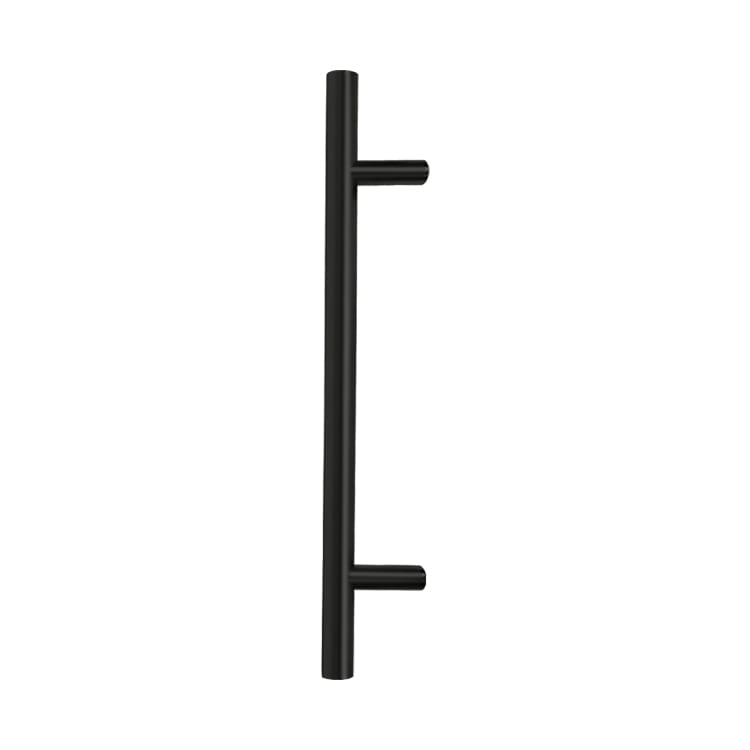

T bar matte black door pull handle with optional size

Type:T bar pull handle
Material:Stainless Steel SS304 / SS316
Length300mm/400mm/600mm/700mm/800mm/1000mm
CTC:200mm/300mm/400mm/500mm/600mm/800mm
Height:65mm/70mm/77mm
Tube Diameter:19mm/25mm/32mm
Finishes:Satin, Polished, Gold, or custom upon request
Fixings:Single Side Screw
Bolt Through
Back to Back

Print It
  • Product Detail
  • Fixings
  • Available Types

UNITY T bar matte black door pull handle with modern design is durable and suitable for different applications in commercial, residential, or industrial places.

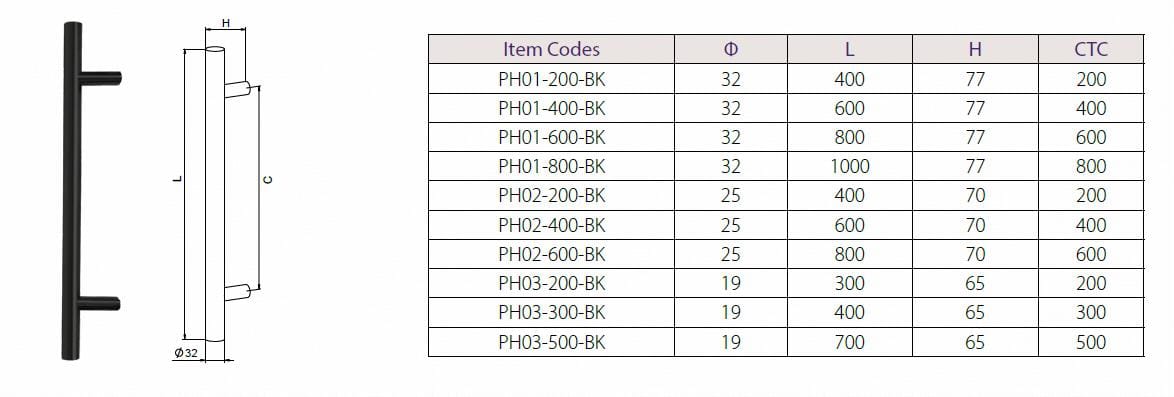

T bar matte black pull handle with optional size (2)

Specifications and Features
– Made of excellent stainless steel material
– Shape: T bar shape, other optional shapes available: C shaped, D shaped, U shape, V shape door pulls.
– Standard size(Tube Length) of T pull handle: 300mm/400mm/600mm/700mm/800mm/1000mm
– Finish: Matte black
– Application: Wood door, glass door, metal doors, composite, aluminum, or hollow metal door.
– Installation accessories are available.
– Service: OEM or ODM available.

Other Finishes Available

  • Satin stainless steel
  • Polished stainless steel
  • Stainless steel PVD Titanium
  • Stainless steel PVD Black Tone

*Other finishes available upon request.

UNITY stainless steel T bar matte black door pull handle is also available in the antimicrobial function, if you have any interest, please contact us to get details of Antimicrobial Door Hardware.



For the fixings of the UNITY door pull handle, we supply complete fixing packs that can be used for any design or size pull handle and allows for the greatest flexibility for different applications and fixing requirements while helping you maintain the minimum stock level.

Single side screw fixing for door pull handlesSingle Side Screw Fixing

– Single pull handle in any design or size
– Fixture pack:
Universal adaptor and grab screws
Self-taping screws
Screw length subject to door thickness

Back to back fixings for door pull handleBack to Back Fixing

-Pull handle pair in any design or size
-Fixture pack for all door type:
Universal adaptor and grab screws
75mm Thru bolts for door thickness 13mm to 50mm
100mm Thru bolts for door thickness over 50mm
Clear nylon washers for glass door application

Singe side bolt through fixingSingle Side Screw Fixing

-Single pull handle in any design or size
-Fixture pack for Hollow Metal Door:
Universal adaptor and grab screws
75mm Thru bolts for door thickness 13mm to 50mm
100mm Thru bolts for door thickness over 50mm
Clear nylon washers for glass door application

Pull Handle Styles & Finishes
