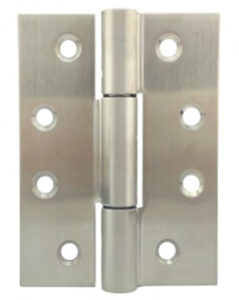

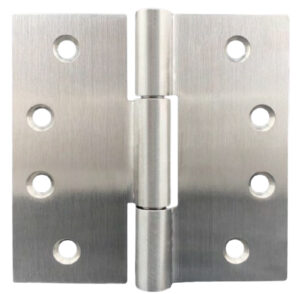

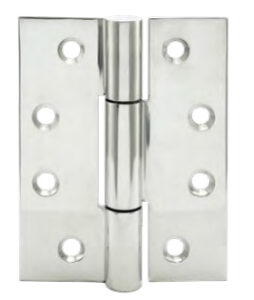

UNITY EN1935 Grade 14 Concealed Bearing Hinge

Model No.:HGS Series

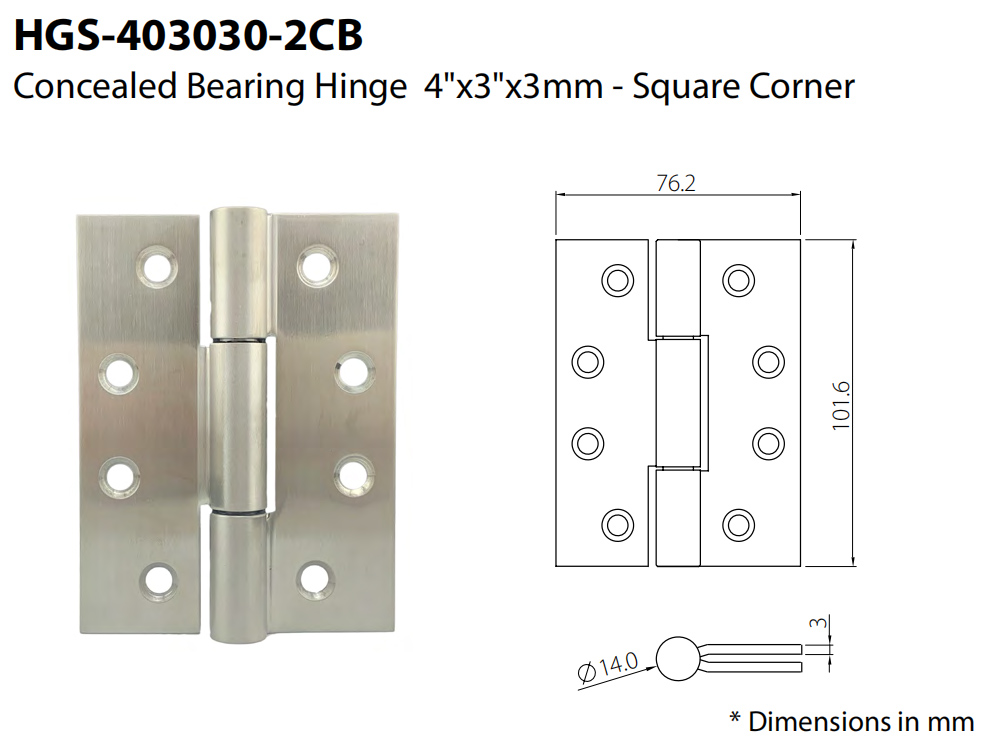

Size:4″ x 3″ x 3mm, 4″ x 3.5″ x 3mm, 4″ x 4″ x 3mm

Size:4.5″ x 3″ x 3mm, 4″.5 x 3.5″ x 3mm, 4.5″ x 4″ x 3mm

Size:4.5″ x 4.5″ x 3mm, 4.5″ x 4.5″ x 4mm

Size:5″ x 3″ x 3mm, 5″ x 3.5″ x 3mm, 5″ x 4″ x 3mm

Size:5″ x 4.5″ x 3mm, 5″ x 4.5″ x 4mm

Size:6″ x 5″ x 5mm

Thickness:3mm, 4mm, 5mm

Finish:Satin Stainless Steel, Bright Stainless Steel

Corner Type:Square corner

Application

High Performance Concealed Bearing Hinge is designed for severe duty usage such as airport and hospital application which has both performance and design element built in.

Specifications and Features

– EN1935:2002 Grade 14 Tested and Certified (Highest Available Grade).

– AISI304 stainless steel material for high corrosion resistance (AISI316 material available on request)

– Concealed Bearing Design for Minimalistic Appearance

– Low maintenance on the bearing for longevity of the performance.

– Designed for metal or timber fire rate door set

– Suitable for wide range of door thickness/weight (up to 160kg*)

– Supplied with CSK stainless steel screws

– Security stub version available upon request

* Weight of the door set including all hardware fitted must be considered towards the load on the hinges. Advice regarding use of door closing device please refer to Annex E of BS EN 1935

* Dimension of the door must be fitted according to EN1935 standard. Advice regarding the use of hinges on doors with excessive width/height please refer to Annex D of BS EN 1935

Standards and Certification

	Successfully type-tested for conformity to all requirements of EN1935: 2002
	EN tests performed independently and certified by Intertek Testing Services Ltd.
