ANSI/BHMA Grade 1 mortise passage latch ML107202X

Model No.ML107202X
Lock TypePassage Latch Lock
Center72mm
Backset Size60mm
Case Size(L*W*H)163mm*91mm*13mm
Forend/Plate Size209.5mm*24mm

Print It
  • Product Detail
  • Standars and Certification

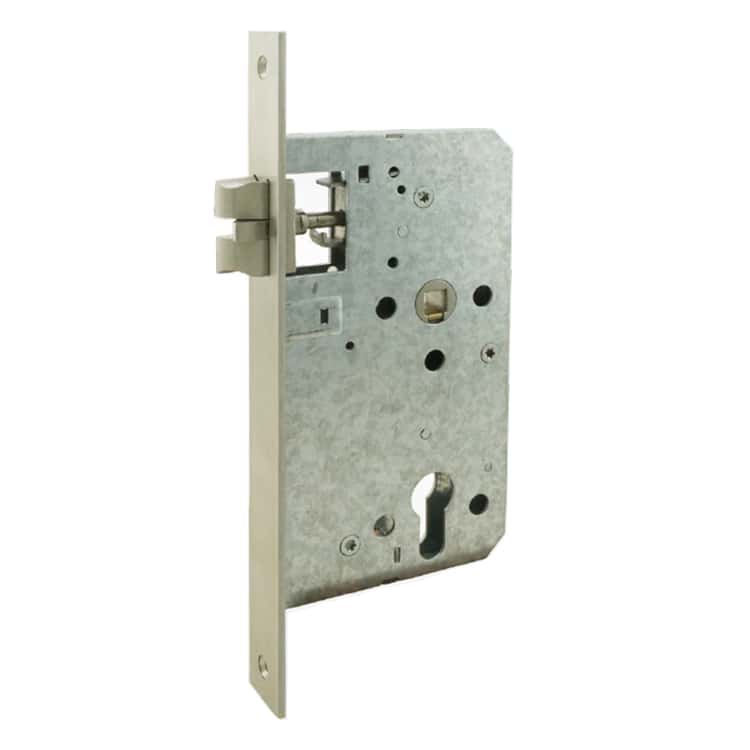

ANSI/BHMA Grade 1 mortise passage latch lock ML107202X,

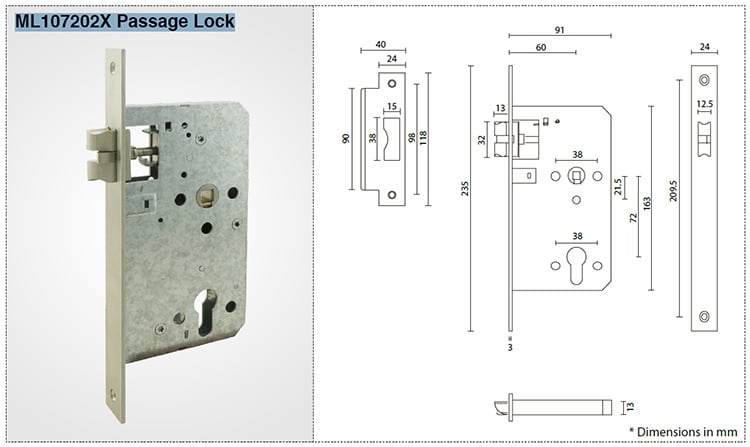

ANSI BHMA Grade 1 mortise passage latch ML107202X Passage Lock-X

Specifications and Features

-Designed to meet and exceed ANSI/BHMA 156.13 Grade 1 door mortise lock body requirement.

– Design for conformity to all of the requirement of EN12209: 2003

– Hybrid design of ANSI Specification in a Euro mortise lock case

– Modular case across functions for rapid door prepping and installation

– Grade 1 mortise passage latch ML107202X: 72mm centers, backset in 60mm

– 8mm follower

– Field reversible Anti-Friction latch bolt in solid stainless steel with 13 mm projection

– Single throw deadbolt in solid stainless steel with 20mm projection

– Stainless steel faceplate and strike plate

– Compatible with bolt through furniture and escutcheons of 38mm centers

– Compatible with the standard cylinder with Euro compatible cam

– Covers various functions and applications

ANSIBHMA A156.13 Grade 1 heavy duty Mortise Lock For School Classroom

Certification for ANSI BHMA Grade 1 Mortise Lock
